Geodesic Newspaper Dome
What Will You Learn?
Geodesic domes don’t just look cool. They’re also way stronger than regular building shapes. Like tetrahedrons, they’re made completely of triangles. But they also have the strength of rounded arches. And they don’t need any internal walls or supports to hold them up, so they use a minimum of materials. Geodesic domes are so strong and compact, they’re used to house radar equipment near the North Pole. But they’re also used as futuristic buildings in places like Disney World in Florida.
Roll the Newspaper
Lay a sheet of newspaper on the table. (Use two or three sheets if you want to make your struts extra strong.)
Place a toothpick or skewer at one corner, and tuck the corner of the newspaper under it. Then use it to help you roll the sheet up as tightly as you can to form a strut. As you roll, gently slide your hands apart to keep the ends nice and tight.
When you reach the other corner of the newspaper, wrap it tightly around the middle with a piece of masking tape.
Repeat until you have 65 struts.
Trim the Struts
Next, use the scissors to trim about an inch of one end of each strut.
Then use a yardstick to measure the struts to the proper length and trim of the other end. You will need:
- 35 long struts that are 28 inches (71 cm) each
- 30 short struts that are 26 inches (66 cm) each
Mark the long struts and the short struts with different color tape or markers so you can tell the two sizes apart.
Build the Triangles
Now, begin to build your dome. Take three long struts and tape them together at the ends to form a triangle.
Make four more triangles, for a total of five. These are the long triangles.
Make five more triangles the same way, but use one long strut for the base and two short struts for the sides. These are the short triangles.
Build the Triangles

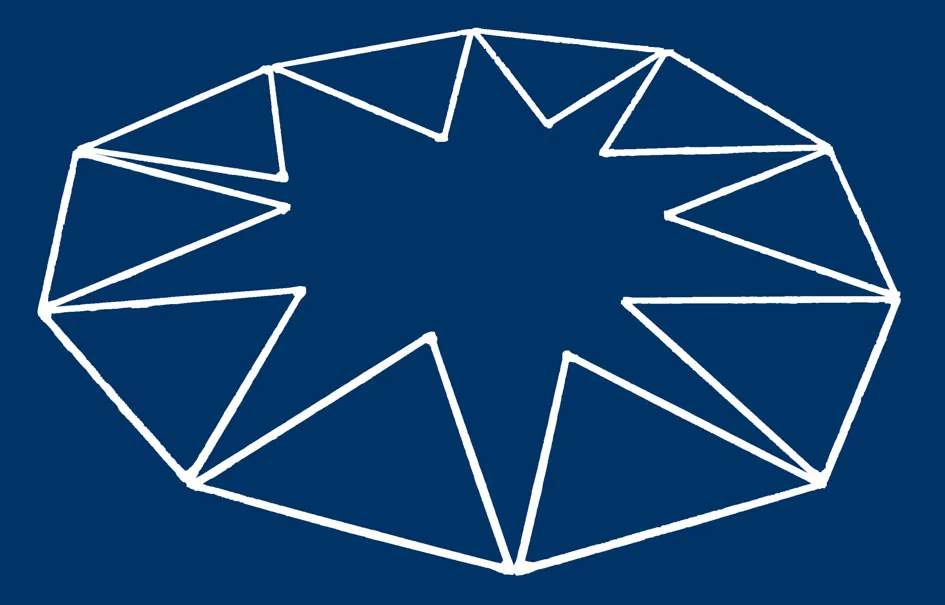

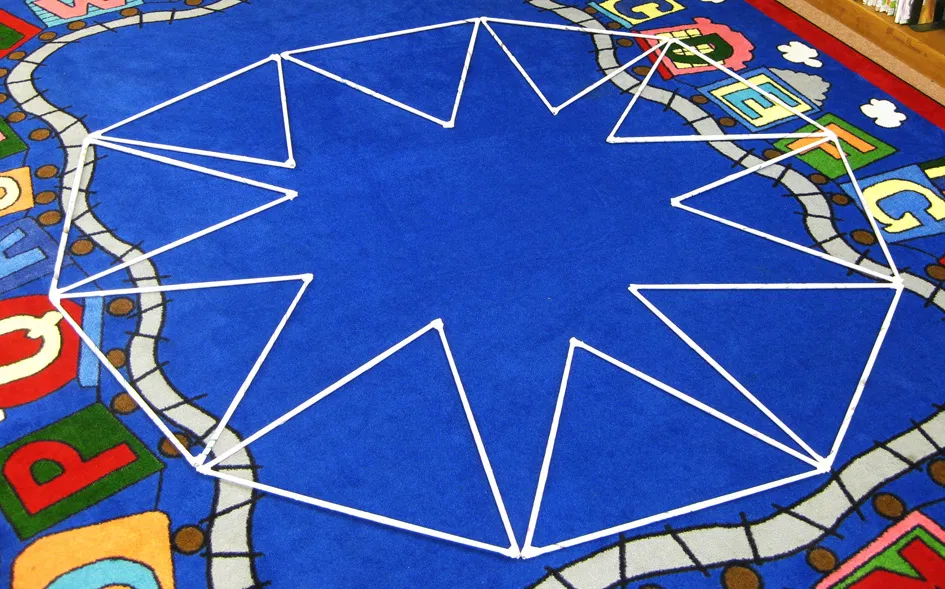

The base of the dome is a decagon with 10 sides. To make it, you will lay down all the triangles you just created so that their bases form a rough circle.
Start by laying down one long triangle.
Now lay a short triangle next to it, so that one end of the base (the long strut) is touching a corner of the other triangle.
Continue alternating long and short triangles around the rough circle, tops pointing in toward the center, until they are all touching.
Build the First Level
Take a short strut and use it to connect the top corners of one triangle to the top corner of the one next to it. It helps to do this with a partner: one person to hold the strut, and one person to tape.

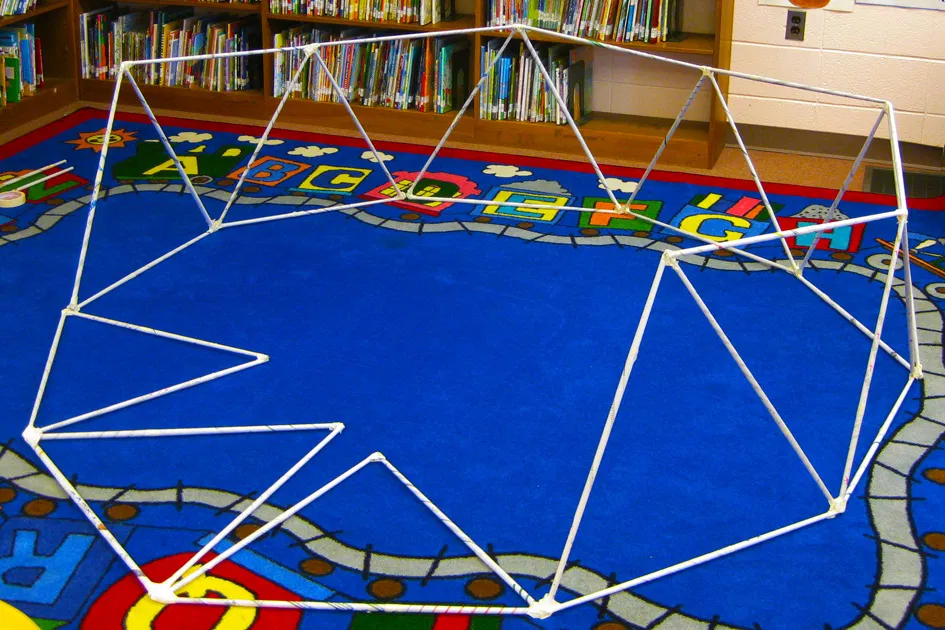

Go around the dome and connect all the triangle tops the same way. The first level of the dome should now be standing up and leaning a bit toward the center.
Build the Next Level

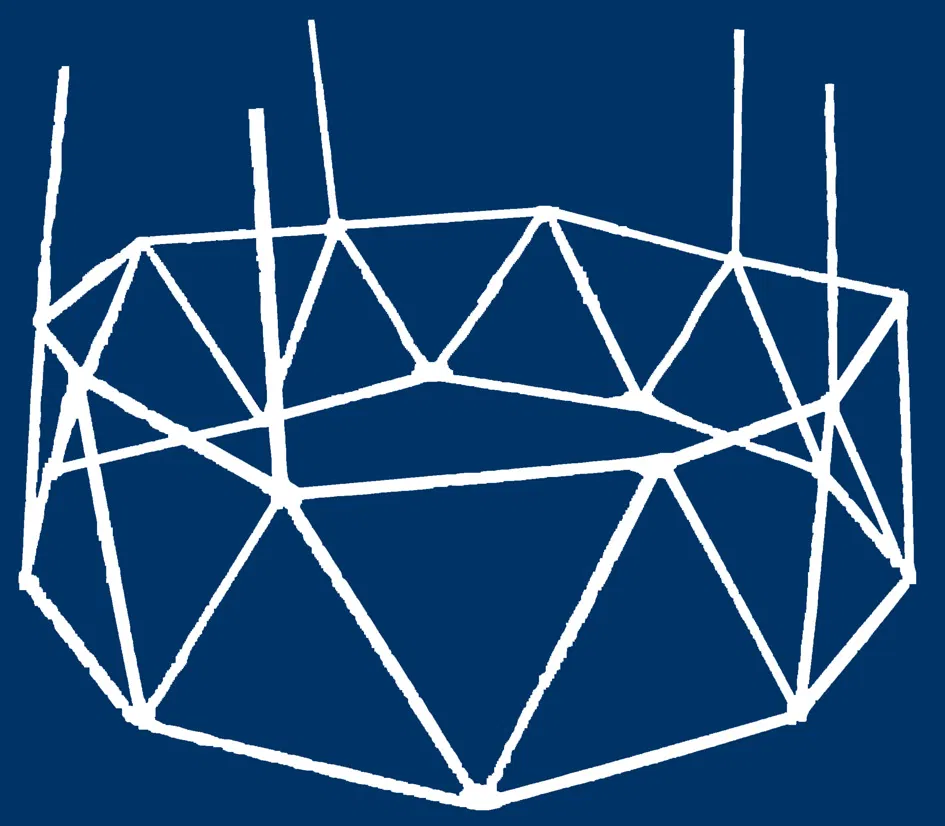

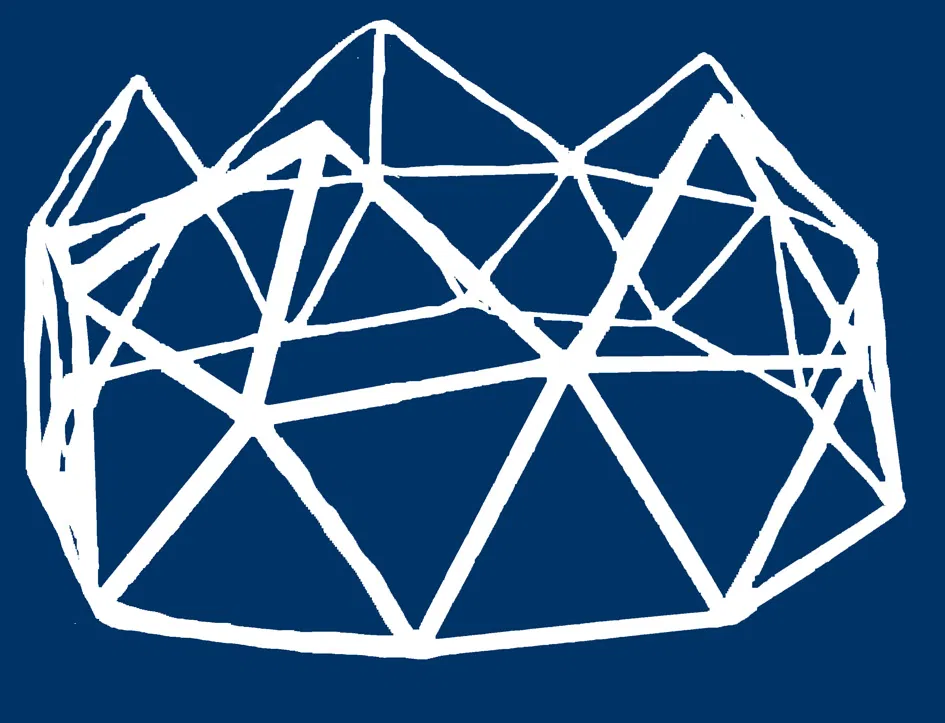

For the next level, tape one end of a short strut to the top of every short triangle. Then use two long struts to connect the top of the loose stick to the top of the triangle to the right and the left. Repeat all around the dome.

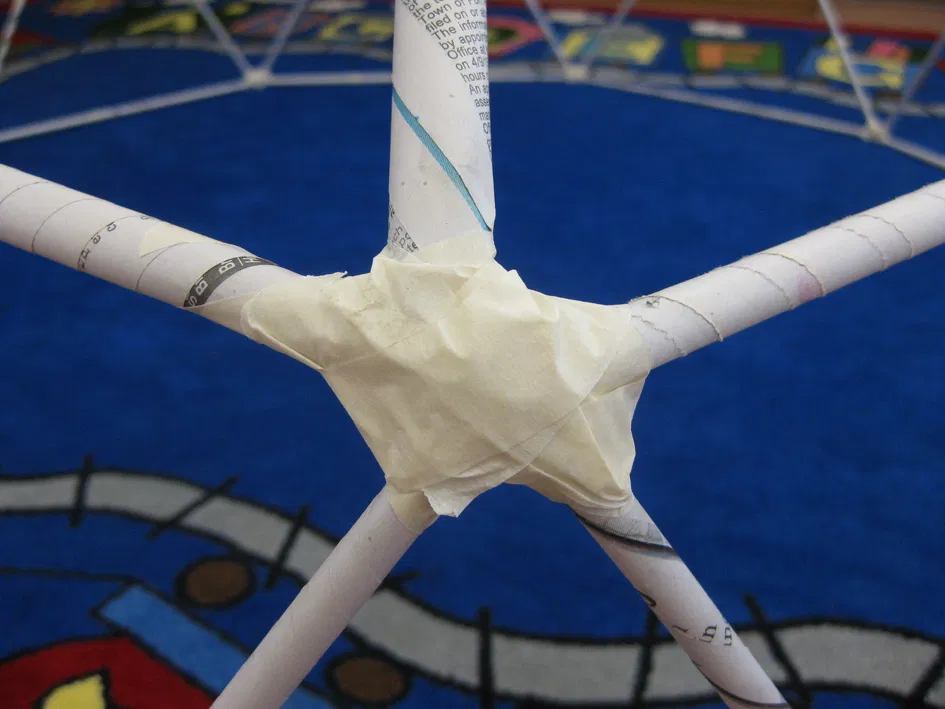

At this point, it’s a good idea to inspect your dome for any broken or loose connections. Wherever corners of triangles meet, loop some tape through the openings from one triangle to another until every opening is secured.
Build the Last Level

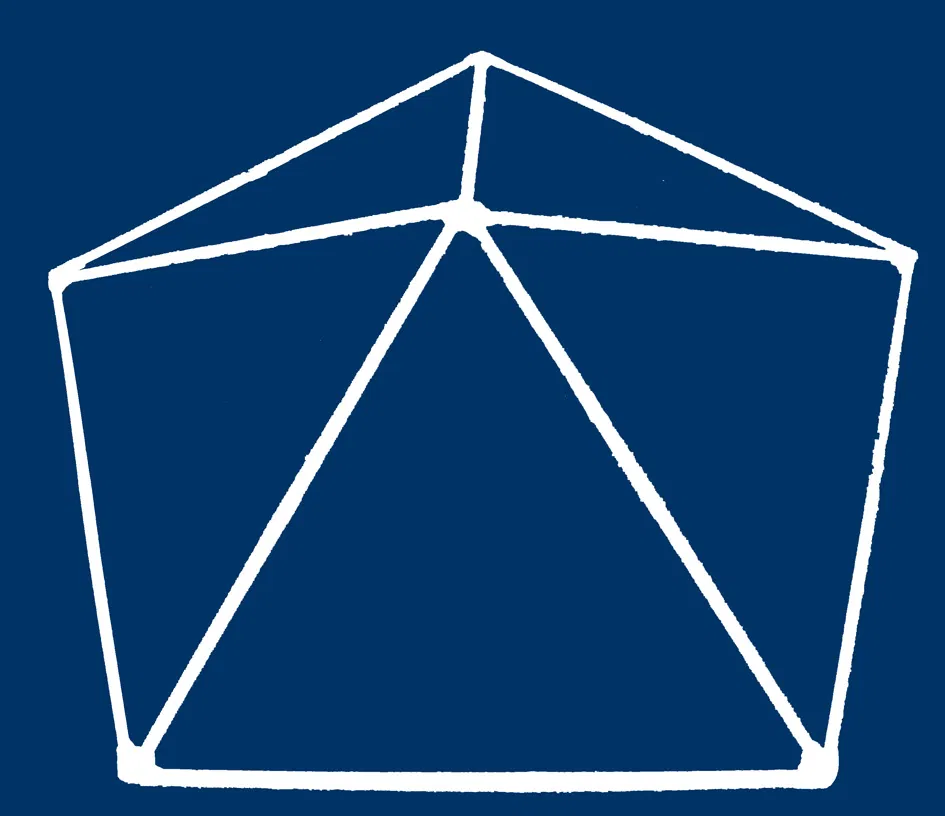

To make the last level, take five long struts and lay them end to end to form a pentagon. Tape them together.
Tape one short strut to each corner and let them lop into the middle. Take all the loose ends and connect them with more tape.
Fit the pentagon into the opening at the top of your dome.
Secure everything with plenty of tape. If you like, you can cover your dome with lat sheets of newspaper to create a playhouse or shelter.
