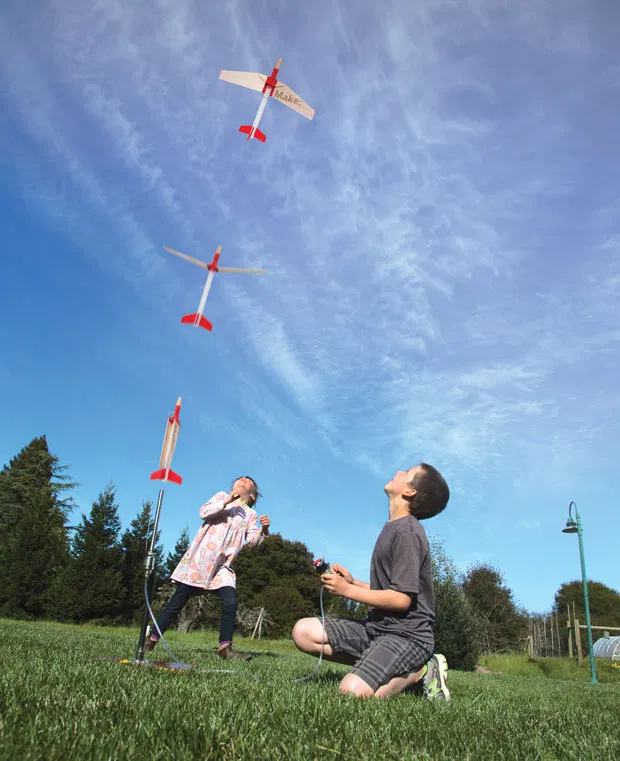

Air Rocket Glider

1-3 hours

Intermediate

Ages 12+

What Will You Learn?​

Rick Schertle’s Compressed Air Rocket Launcher project in MAKE Volume 15 was wildly popular. He also created the Folding-Wing Glider in Volume 31. In this project he and Keith Violette team up to merge the builds into an air rocket glider.

Not only will you explore 3D printing, but you’ll cast the nose of the rocket, can use laser cutting skills to make the wings, develop mechanical engineering skills by building the compressor, and develop design skills as you adapt the glider. There are also lots of options to take this project further.

If you don’t have a 3D printer available, but still want to build the glider, a kit is available in the MakerShed.

The Original Project

To use this glider, you’ll also need to build the launcher from the Compressed Air Rocket project. This is a fairly easy build that will take 2-4 hours. The best part is that the paper rocket companion project is also great for camp or fun at home. This original project has been updated for better performance. New instructions are available on the AirRocketWorks website.

You can build the launcher completely DIY, or use the Compressed Air Rocket Launcher Kit in the MakerShed. A printable PDF of the project is also available for download.

IMPORTANT: This is a high-pressure device. Adult supervision is required. Never aim this device at people or animals.

Print the Plastic Parts

Step 1

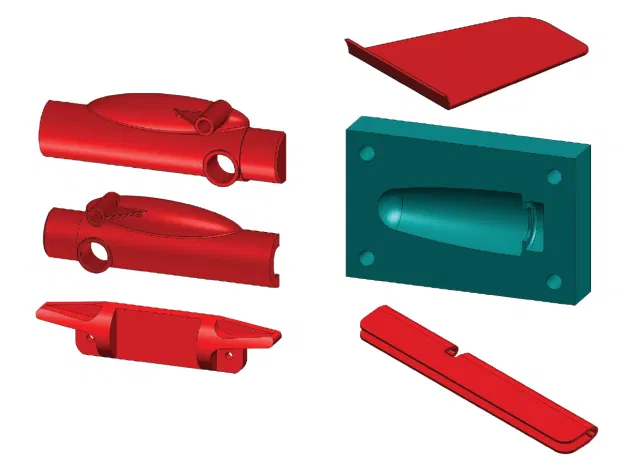

Download the part files and 3D-print them in ABS plastic at 100% fill: left fuselage, right fuselage, wing pivot halves (2), tail fins (3), and the 2-part nose mold (optional, see Step 2).

Cast the Soft Nose (Optional)

Step 2

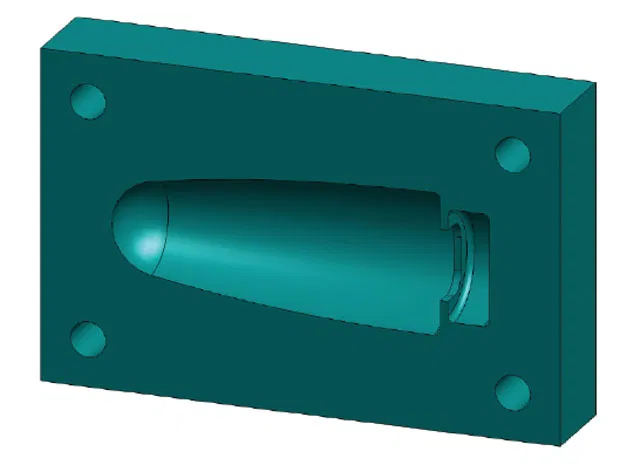

Assemble the 2 halves of the nose mold and bolt it together with #10-32 screws, washers, and nuts. Mix about 20ml of urethane resin as indicated on the manufacturer’s label in a paper cup. Remove the plunger from the syringe, hold a paper towel over the tip of the syringe, and carefully pour the mixture into the barrel of the syringe. Insert the plunger, and turn the syringe upright. Allow the air bubble to rise to the tip of the syringe, and expel it.

Step 3

Place the tip of the syringe into the large hole in the mold, then slowly and steadily inject the resin until a puddle forms on top of the mold at the small vent hole. Allow the resin to cure according to manufacturer’s instructions.

Step 4

Optionally, you can 3D-print the soft nose in flexible filament at 100% fill. We’ve provided preconfigured .ini slicing files.

Fabricate the Body Tube

Step 5

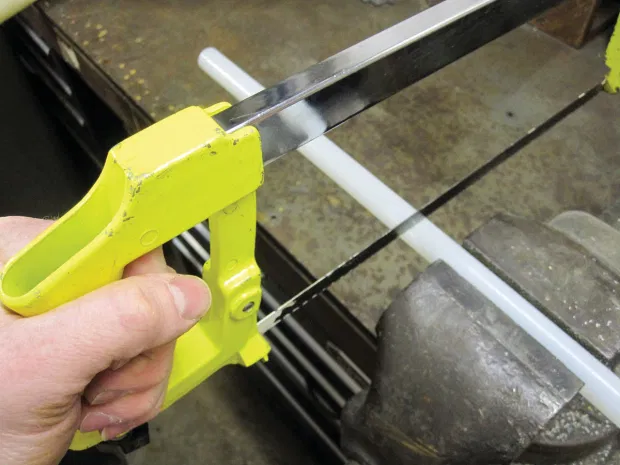

Cut the body tube to 9″, using a hacksaw. Sand the ends smooth and perpendicular, and remove any burrs on the inside and outside of the tube at both ends, using 220 grit paper.

Step 6

Mark a line down the length of the body tube with a pencil. I like to use the old rocket fin trick — press the tube into the corner of a doorjamb, and use the jamb as a guide to draw your line.

Step 7

Download the paper template, print it at 100% scale, and cut out the fin guide. Wrap around the guide, align the Vertical Tail mark with the first pencil line, and draw pencil lines for the other 2 fins.

Assemble the Fuselage

Step 8

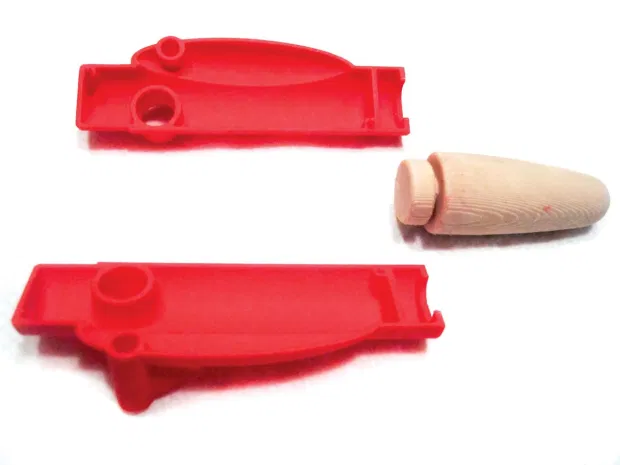

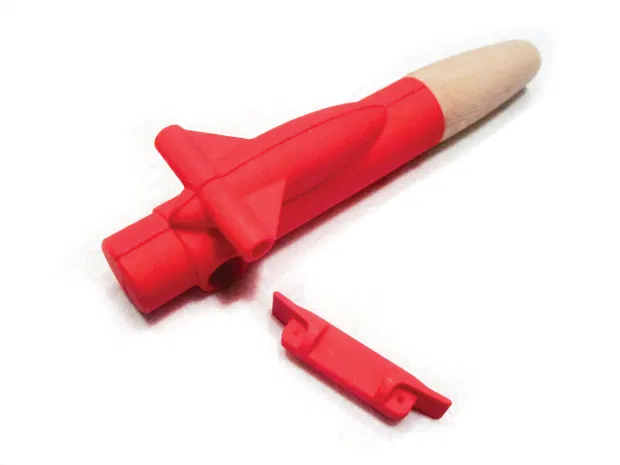

Seat the rear end of the soft nose in its pocket in the left fuselage. Using 1/4″ lengths of filament in the corner holes as alignment pins, either Ø1.75mm or Ø3mm, super-glue and clamp the fuselage halves together, capturing the nose between.

Step 9

Let the glue dry, then clean out the wing pivot hole using a 3/8″ drill bit if needed. Alternately, you can clean the hole with a rolled up piece of sand paper if needed.

TIP: A 3/8″ drill bit can be used in the large wing pivot hole to keep the halves aligned — just try not to glue it in place.

Assemble the Wing pIvot

Step 10

Carefully align the 2 halves of the wing pivot and glue them together. I like to make a simple U-shaped tool from a large paper clip to keep the holes aligned.

Step 11

Test-fit the wing pivot in the fuselage and ensure that it rotates freely without binding. Sand down the glue seam or the outer faces of the wing pivot if needed.

Mount the Body Tube

Step 12

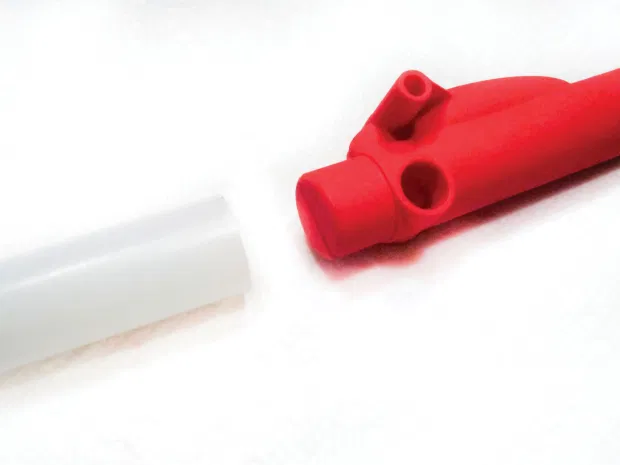

Glue the fuselage into the body tube using superglue. I like to apply it to the small diameter at the rear of the fuselage in a zig-zag pattern, and install the fuselage into the body tube with a twisting motion. Align the seam on the top of the fuselage with the Vertical Tail pencil line you marked on the tube. Work quickly, you only have a second or two before the glue sets up.

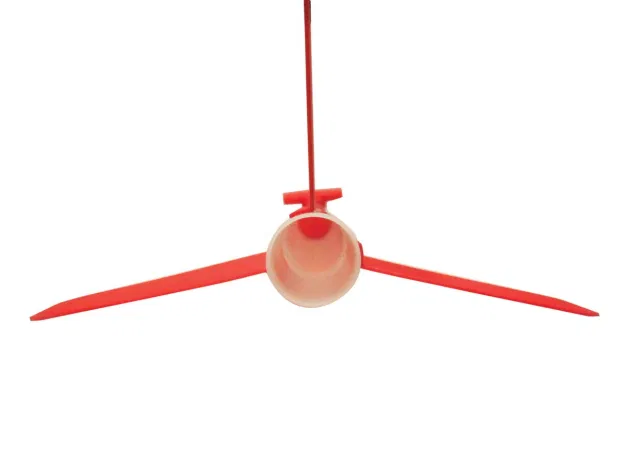

Mount the Fins

Step 13

Wrap the sandpaper around the body tube, abrasive side outward, and move the base of each fin along the paper, to ensure a good surface and a matching radius to adhere the tail fins. Wrap a piece of masking tape around the body tube 2″ from the open end.

Step 14

Apply superglue to the inside of the curved base of one of the fins. Carefully align the flat face of the fin with the Vertical Tail pencil line, and align the leading edge of the fin with the tape edge. Bond the fin in place. Bond the remaining 2 tail fins in place, aligning the flat faces with the marks on the fin spacing guide. Note that all 3 fins are identical, so the base of each fin will wrap around the body tube in the same direction. Remove the tape and pencil lines.

Build the Wings

Step 15

Cut the balsa wings as shown on the printed template. Use sandpaper to round the leading and trailing edges. This will help prevent cracks and improve the aerodynamics.

Step 16

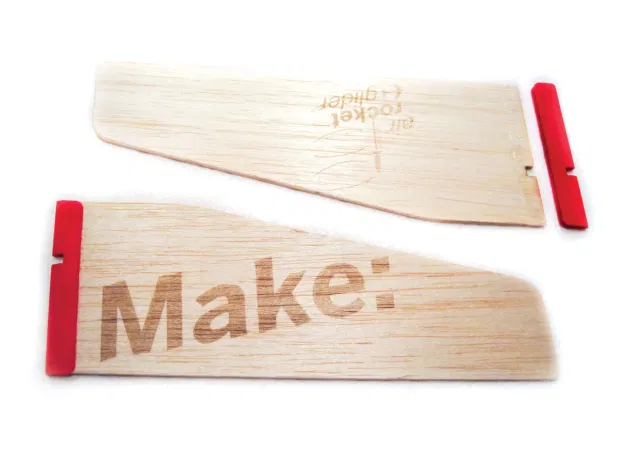

Apply super glue to the top and bottom of the wing, 3/8″ out from the base edge. Align the notch in the wing reinforcement piece with the notch in the balsa wing, and quickly slide it onto the wing. There’s an internal stop that the balsa wood will touch, and you will feel it fully seat in place.

Step 17

Now you’ll add the staples that will anchor the rubber band. Notice the staple location marked on each wing template. Overlay the template on the wing, and open a standard stapler into “tacking” mode. Place the wing on 2 layers of cardboard, and staple through each wing where indicated. Pull off the paper template, taking care not to dislodge the staple.

Apply Superglue

Step 18

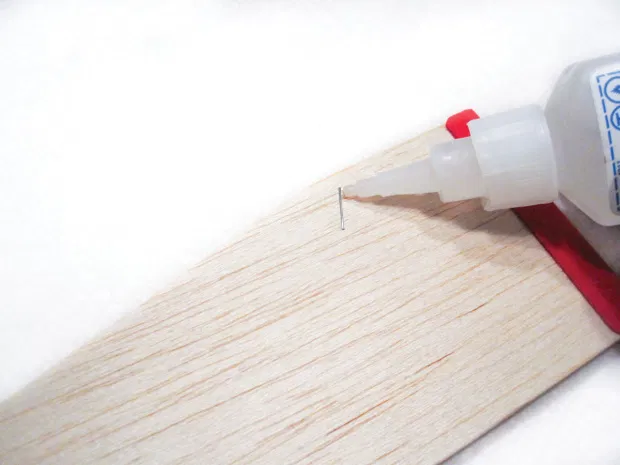

Apply superglue over the base of the staple on the underside of each wing. This will bond the staple in place and harden the balsa, reinforcing the wing around the staple.

Step 19

Once the glue has cured, flip the wings over and bend the staple leg nearest to the middle of the wing down flat to the surface. Cover this leg with super glue. Also apply superglue to the base of leg of the staple that is standing straight up. Once the glue has cured, bend a small hook into the standing leg, with the point of the hook aiming toward the angled bend in the leading edge of the wing.

Bend the Pivot Wire

Step 20

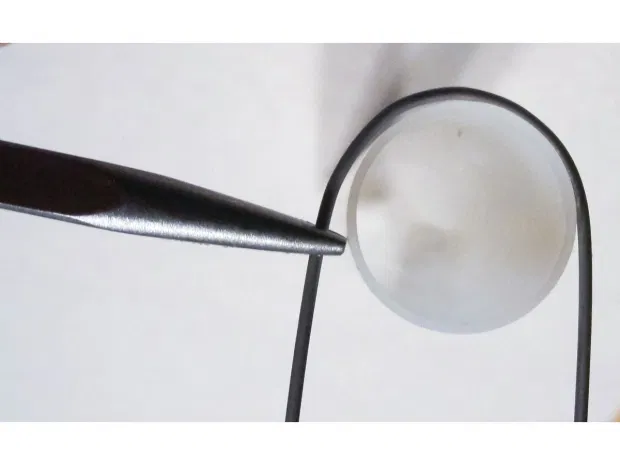

Starting halfway down the length of the 9″ wire, use needlenose pliers to bend a gentle radius in the wire that matches the outer diameter of the body tube. The legs of the wire should be parallel to one another, and roughly equal in length — they don’t have to be perfect, you’ll trim them later.

Step 21

Now grip the wire just below the midline of the tube, as shown, and make an approximate 100° forward bend in each leg of the wire. Again, the legs should be parallel after bending.

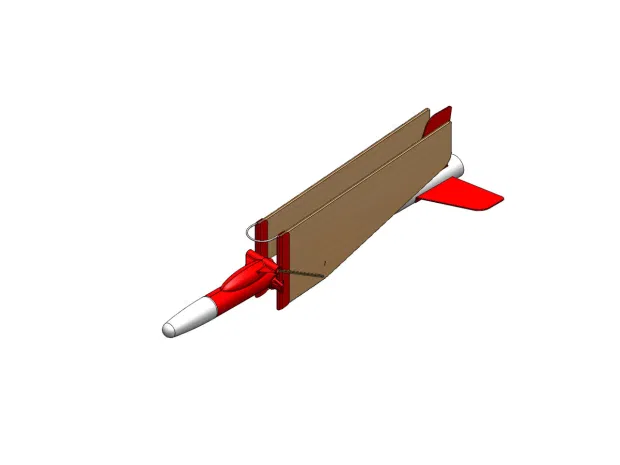

Assemble the Moving Parts

Step 22

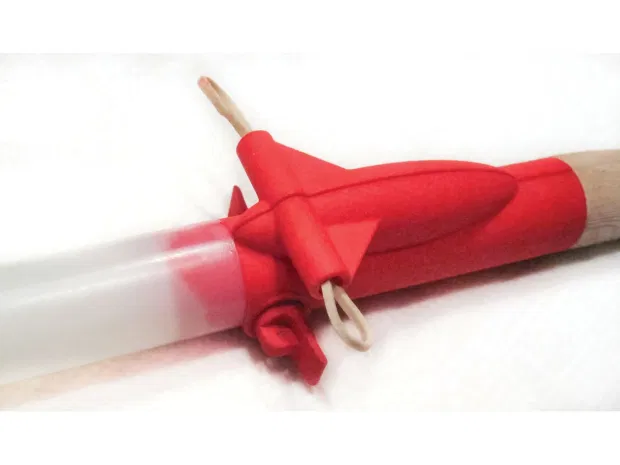

Insert the rubber band through the upper hole in the fuselage. If needed, a short length of small-gauge wire can be bent in a U and used to thread the rubber band through the tube.

Step 23

With the wing pivot installed in the fuselage, align the notches in the wing reinforcements with the holes in the wing pivot. Ensure the hooks formed by the staples are facing away from the body of the plane. Slide the bent wing pivot wire through the wing reinforcements, starting at the rear (trailing edge) of the wings. It should slide along the base edge of the wings, through the holes in the wing pivot, and out the leading edge of the wing. This may take a couple of tries to get it seated. Pivot the wings to ensure smooth operation. Mark the excess wire flush to the front edge of the wings, and trim to length.

Step 24

Stretch the rubber band and hook each end of the band to the formed staple hook on each wing. Careful, as you can easily pull the rubber band out one side of the body.

Test Your Wings

Step 25

You should now be able to test the folding action of the wings. Start with the wings folded back. When released, the wings will hinge forward on the pivot wire, and then rotate on the plastic pivot into gliding position. Ensure that they open quickly, evenly, and smoothly. If one side opens faster than the other, equalize the tension in the rubber band between the fuselage and the staple on each wing. Now check the angles of the wings in the deployed position. The angle of attack — how the wings’ leading edges are raked slightly higher than the trailing edges — can be adjusted by altering the two 100° bends in the wing pivot wire.

Create Dihedral Angle

Step 26

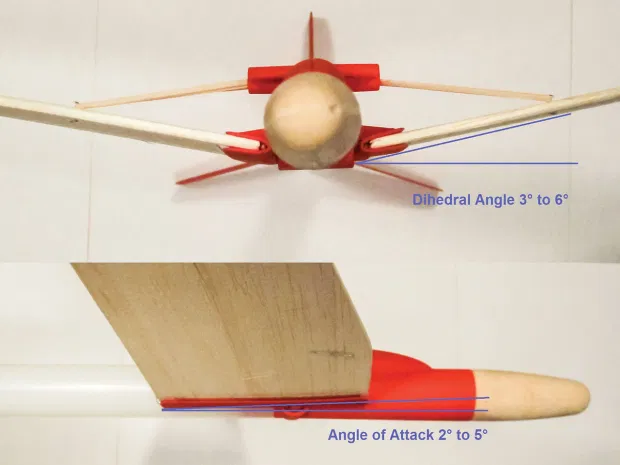

The dihedral angle — how the wings angle upward from fuselage to wingtip — should be 3° to 6° as built here. You can alter it by adding tape or thin shims to the top of the wing where the wing pivot contacts the wing reinforcement at the base of each wing. Greater dihedral angle makes the plane more steady, but slightly reduces lift.

Balancing and Tuning

Step 27

Due to the varying densities of balsa wood, it’s important to balance your Air Rocket Glider left to right. To do this, simply invert the plane and balance it so it can roll side to side on your fingertips. If one wing is heavier than the other, you can add bits of packing tape to the tip of the lighter wing until the plane balances evenly. This will help the plane fly straight and true.

Step 28

If you’re flying your ARG in a smaller field or park, you can purposely weight one wingtip to upset the balance. This will cause the ARG to spiral down to the ground, and not drift too far from the launch site.

Step 29

On windier days, a second rubber band can be added to increase the opening power of the wings. This will cause the wings to deploy slightly sooner, at a lower altitude, but will help prevent the wind from causing the plane to tumble or spin without opening its wings fully.

Step 30

As the rubber band gets old and tired, it should be replaced to ensure proper wing operation. During storage, unhook the rubber band from the wings to prevent it from stretching.

Launching the Air Rocket Glider

Step 31

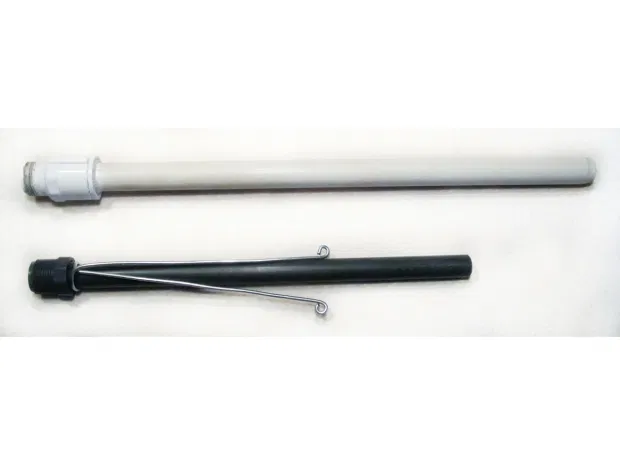

The ARG launches off of a 3/8″ NPT pipe about 12″ long, which is threaded on one end to connect to the launcher valve. A bent piece of wire holds the wings in the folded position until the ARG is launched. The new Compressed Air Rocket Launcher Version 2.0 kit includes this launch tube, adapter, and the wing holder wire.

Step 32

If you have MAKE’s older Compressed Air Rocket launcher made from PVC pipe and a sprinkler valve, its existing launch tube is too large — but that’s easily remedied. Just remove the existing 1/2″ PVC launch tube (shown in white here), and swap it for the 3/8″ NPT pipe, 12″ long, that’s threaded on one end. Screw the 3/8″ pipe into a reducer bushing, 3/4″ male NPT to 3/8″ female NPT, then screw the reducer into your existing sprinkler valve.

Step 33

Finally, bend the wing holder wire from an 18″ length of wire coat hanger as shown here, then install it onto the base of your new 3/8″ launch tube as shown.

Step 34

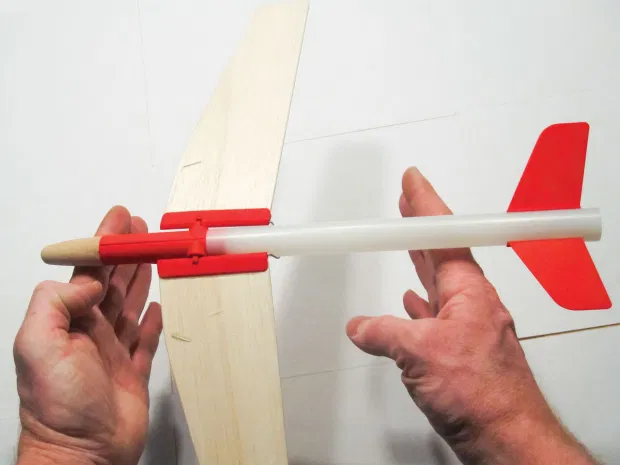

Here’s the ARG on the launcher, with the wings held back by the bent wire, ready for launch!
Let us know how your Air Rocket Glider flies, and get involved in the growing air rocket community, at airrocketworks.com.

What's Next?

Remixes of the Original

Development has continued on this project over the last ten years. Try these links for more ideas.

Take it Further

Written for educators, homeschoolers, parents — and kids! — Make: Planes, Gliders, and Paper Rockets fully illustrated book provides a fun mix of projects, discussion materials, instructions, and subjects for deeper investigation around the basics of homemade flying objects. Organized with lesson plans in mind, this book has all the materials for all of its projects in one easy-to-find spot, offers complete instructions for all builds, and provides discussion materials, questions, and suggestions for ways to challenge students to take their learning to the next level.

About the Magazine

Check out our collection of current and past issues of Make: magazine, rich with new ideas for projects, technology, and DIY articles, this magazine is not to be missed! Or subscribe today to get all the new issues!

This article was originally posted on Make: on May 13, 2014 by Keith Violette and Rick Schertle. Update provided May 29, 2014.
